Oscilloscope Multimeter

This innovative product combines a 400KHz oscilloscope with a multi-function multimeter, making it an essential tool for professionals and hobbyists alike. Whether you're testing and debugging electronic circuits or troubleshooting and repairing electronics, this versatile device has you covered.

Features

Versatility & Digital Display

Combining a 400KHz oscilloscope with a multi-function multimeter, this instrument provides a comprehensive diagnostic toolset for automotive, electronics, and industrial applications. Its 135x240 high-resolution color display ensures clear visualization and accurate numerical readings.

Auto Capture Function & In-depth Measurement Capabilities

The one-button auto-capture function simplifies operation by automatically capturing waveforms, perfect for quick analysis and troubleshooting. This unit supports multiple measurements, including voltage, resistance, duty cycle, and on/off measurement.

Optional Version

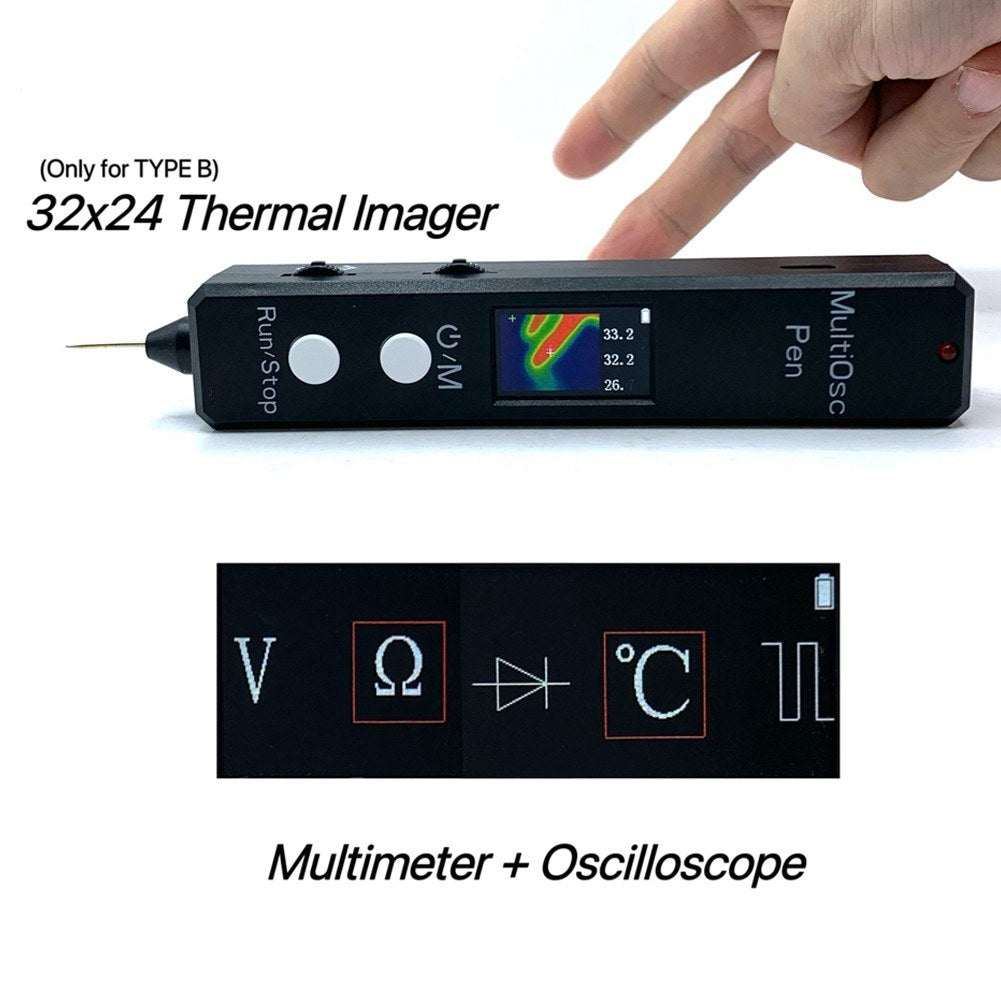

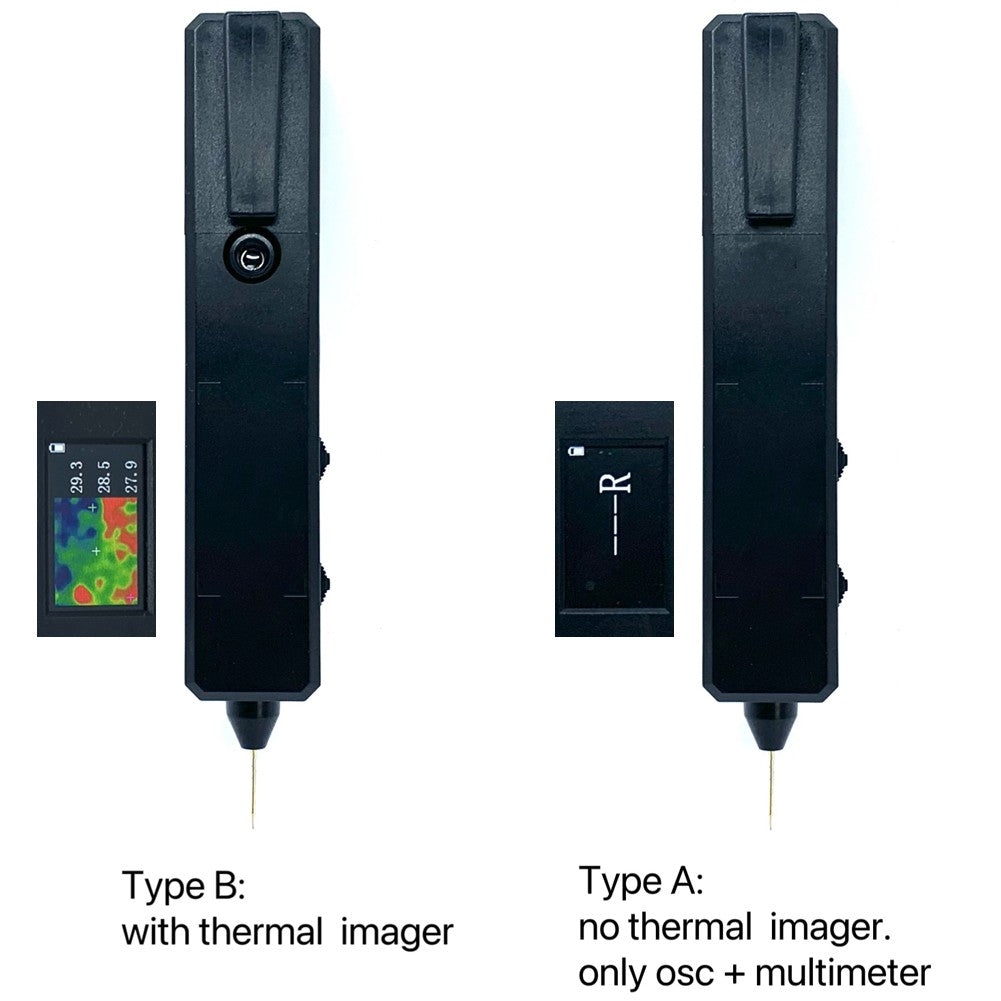

Choose between two versions: one with a thermal imager function and one without. The thermal imager version provides measures and displays MIDDLE/MAXIMUM/MINIMUM temperature readings, enhancing its diagnostic capabilities.

Enhanced User Experience

Designed for enhanced comfort and efficiency, its compact size and lightweight design make it highly portable and safe to use in various environments. A rechargeable battery and charging cable ensure you never run out of power during measurements.

Comprehensive Safety & Wide Applications

This device is ideal for various measurement fields, including electronic circuit testing and debugging, electronics troubleshooting and repairing, as well as communications and computer applications.

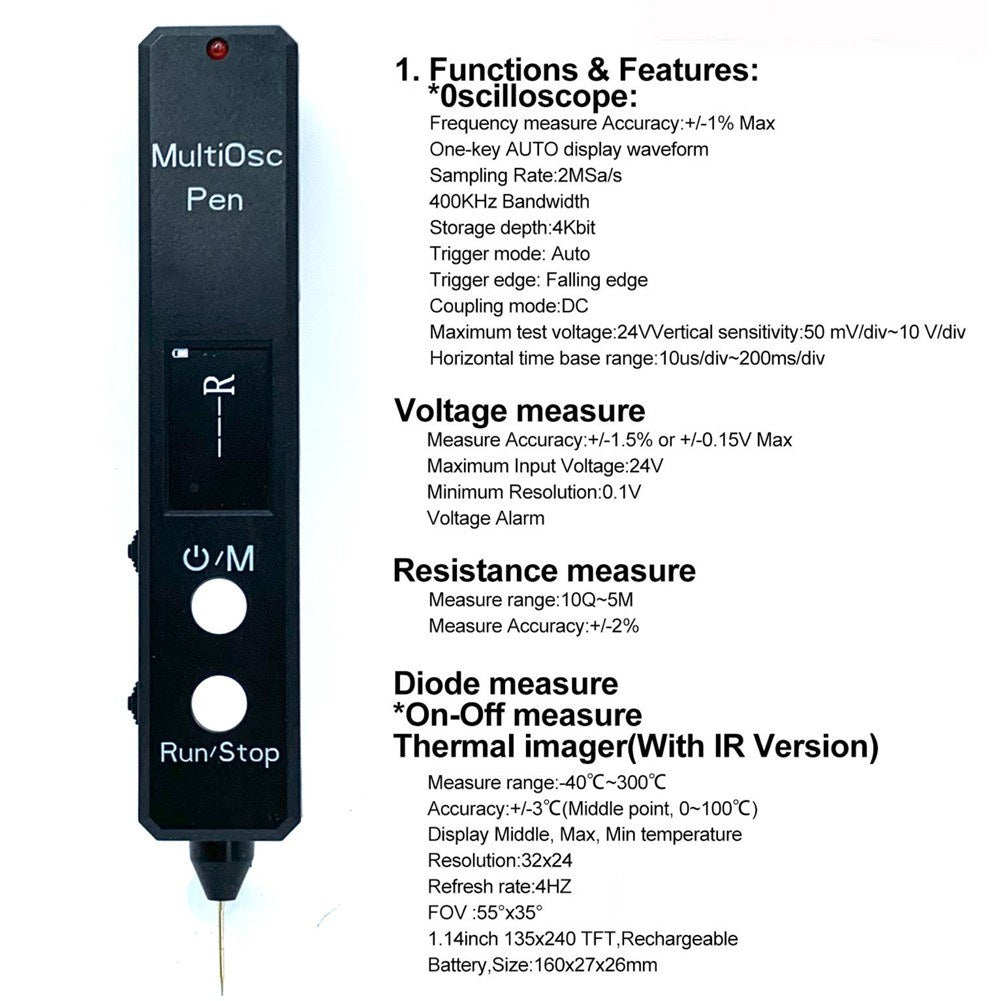

Specifications

• Name: Oscilloscope Multimeter
• Material: ABS

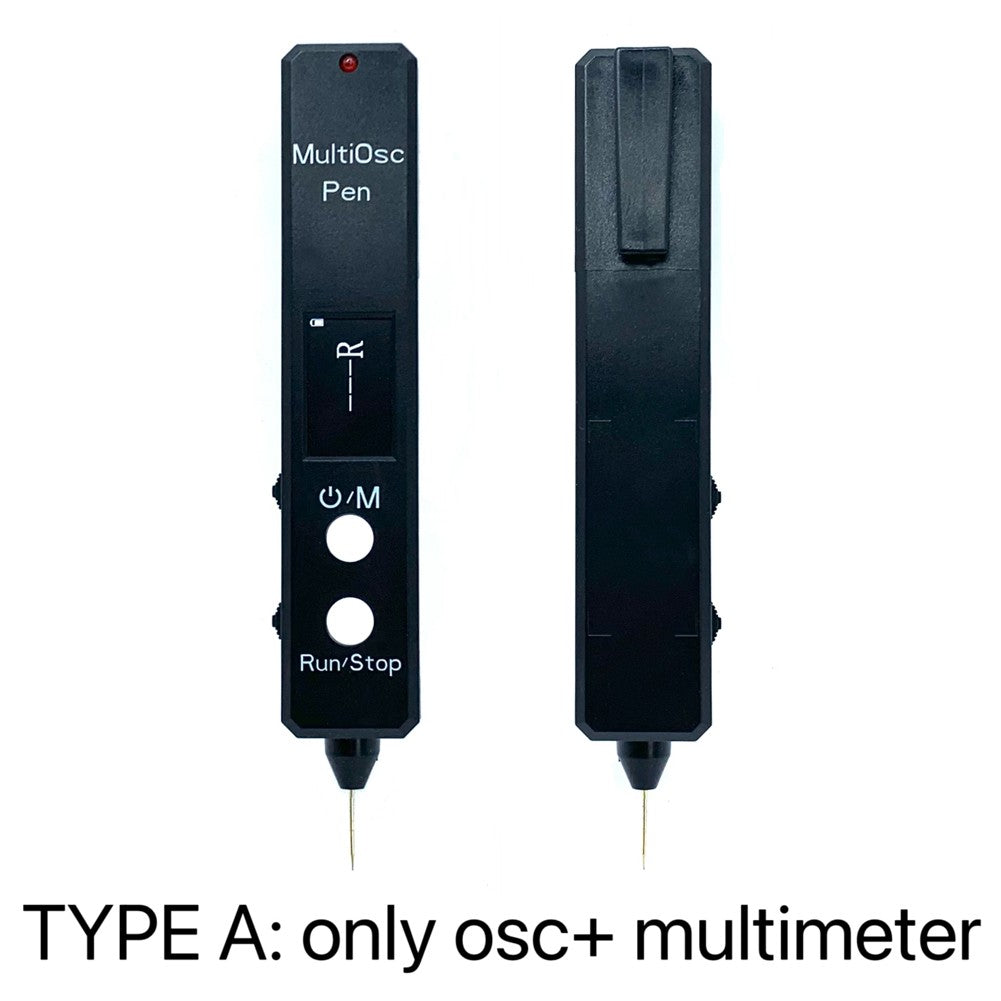

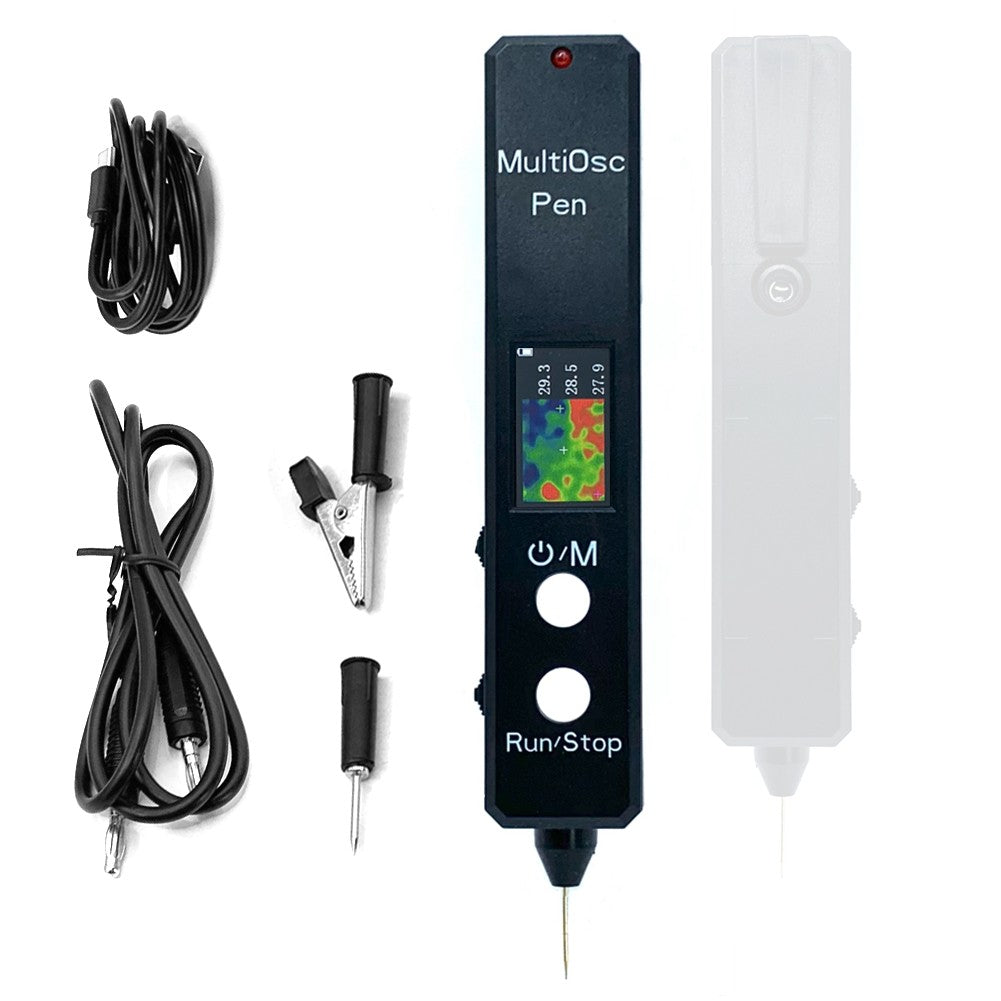

• Version Options: Common version, Thermal Imager version
• Battery: 1 x 200mAh rechargeable battery (included)
• Display: 1.14-inch 135x240 TFT

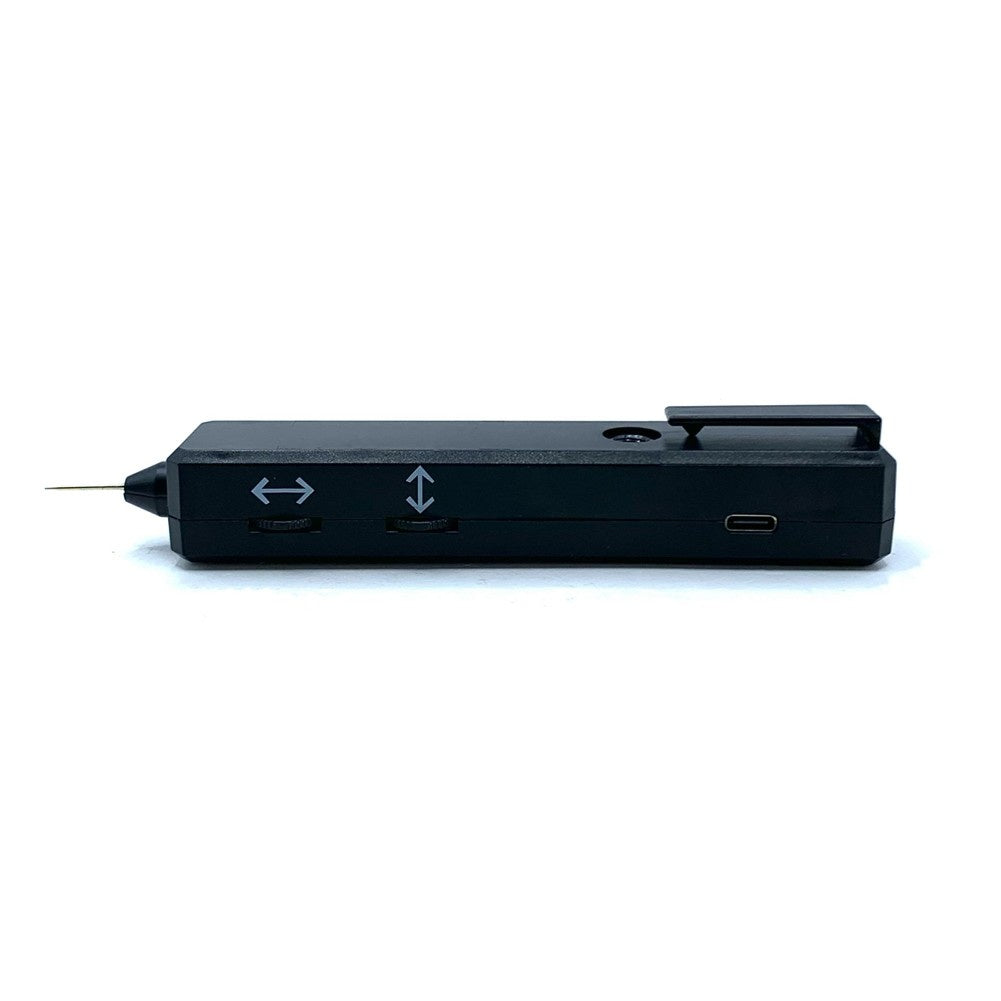

• Power Port: USB Type-C, 5V/1A
• Operate Humidity: ≤80%
• Operate Temperature: 0℃-50℃

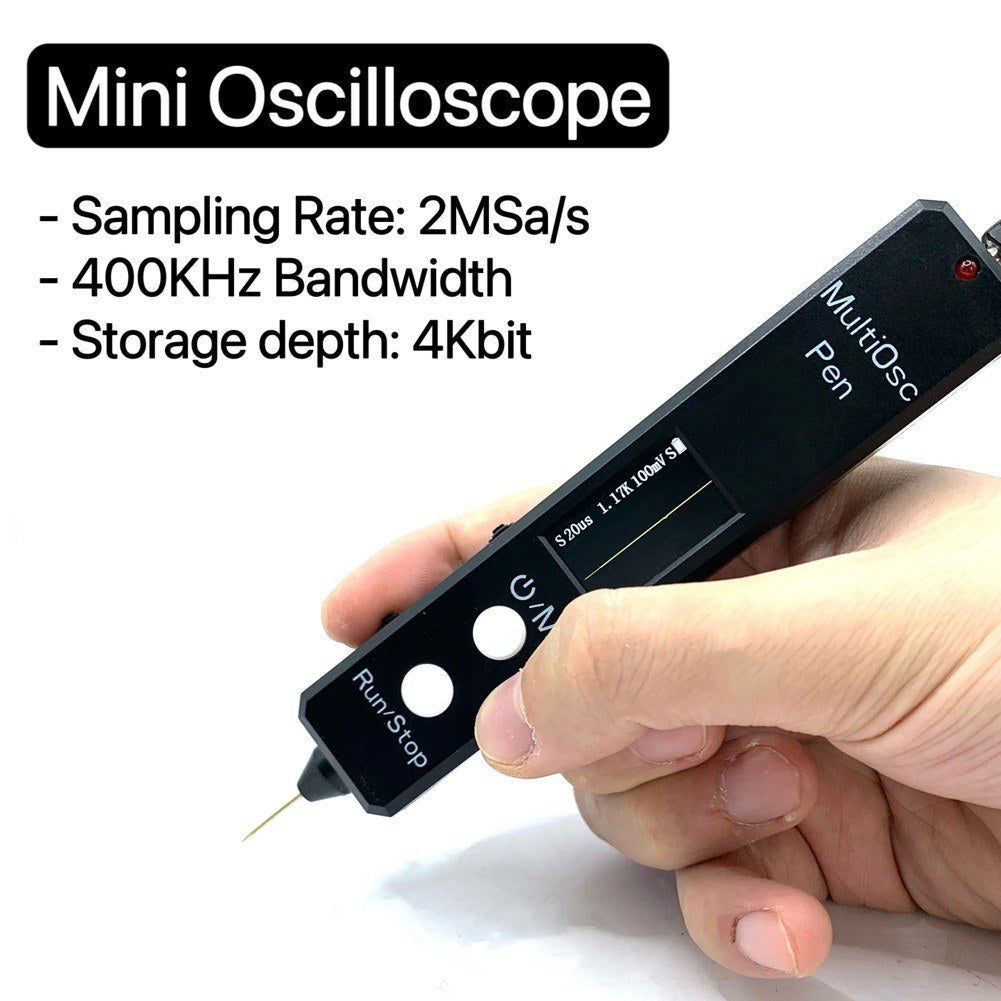

Oscilloscope

• Frequency Measure Accuracy: ±1%
• Sampling Rate: 2MSa/s
• Bandwidth: 400KHz
• Storage Depth: 4Kbit
• Trigger Mode: Auto
• Maximum Test Voltage: 24V

Voltage Measure

• Accuracy: ±1.5% or ±0.15V
• Maximum Input Voltage: 24V
• Minimum Resolution: 0.1V

Resistance Measure

• Range: 10Ω~5MΩ
• Accuracy: ±2%

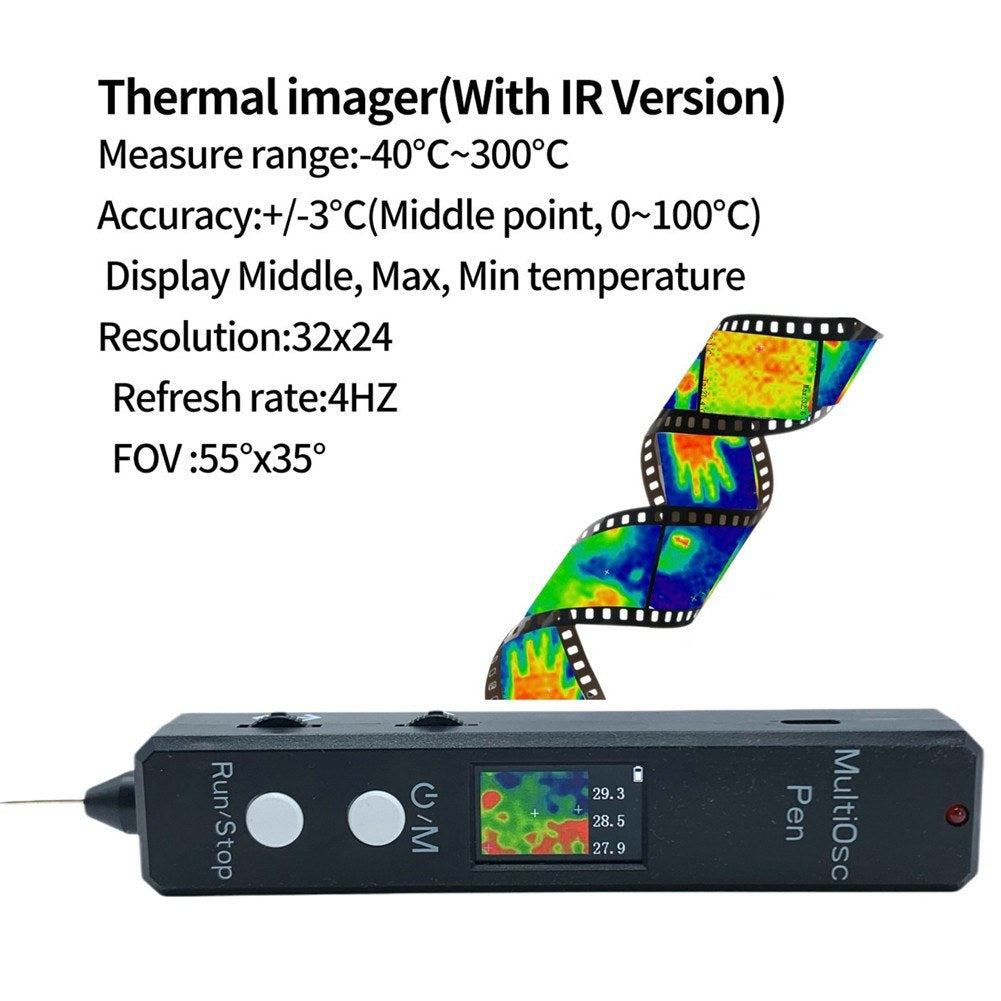

Thermal Imager Version

• Temperature Measurement: -40℃ to 300℃
• Accuracy: 3±℃ (Middle point, 0-100℃)
• Resolution: 32x24
• Refresh Rate: 4Hz

Dimensions and Weight

• Item Size: 160 x 27 x 26mm / 6.30 x 1.06 x 1.02in
• Item Weight: 140g / 4.94oz
• Package Size: 180 x 50 x 50mm / 7.09 x 1.97 x 1.97in
• Package Weight: 150g / 5.29oz

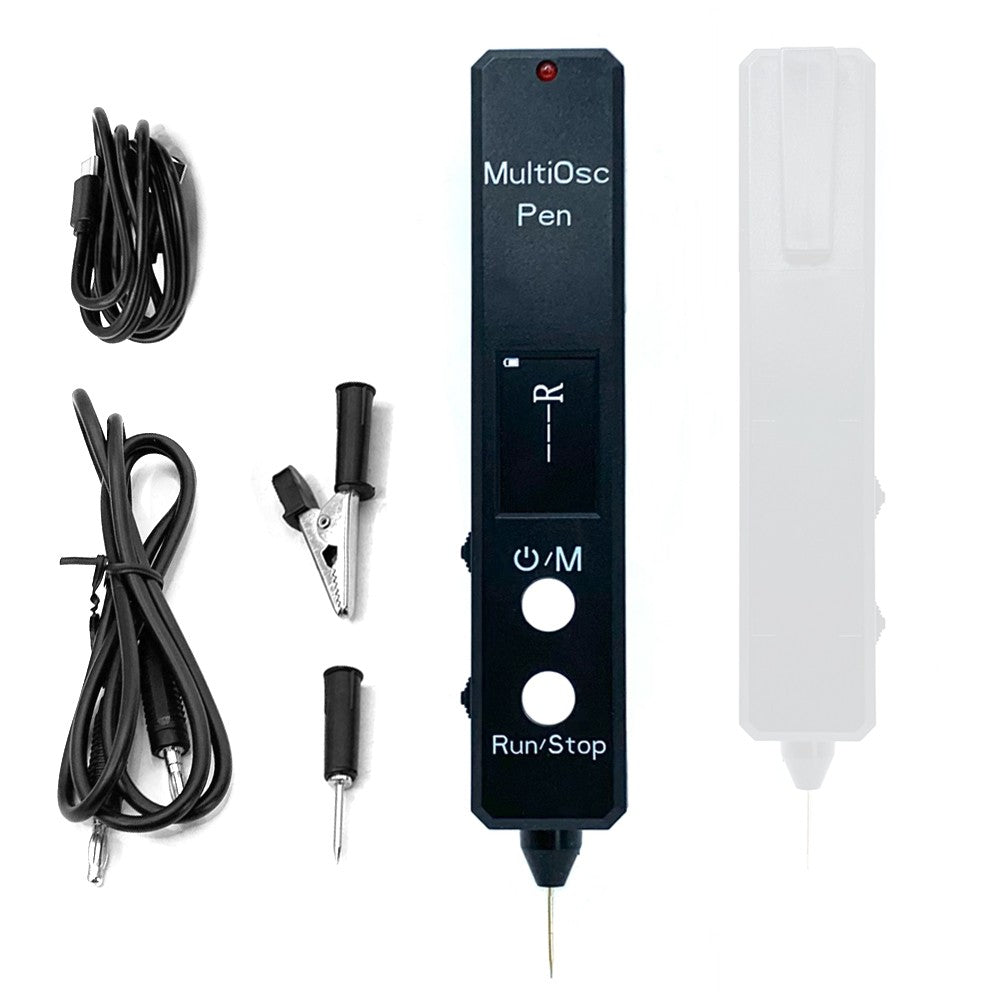

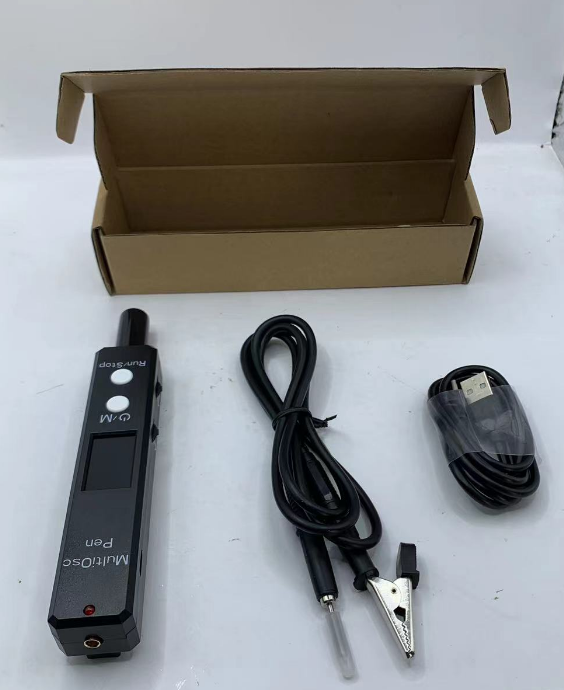

Packing List

• 1 x Oscilloscope Multimeter
• 1 x Test Attachment
• 1 x Type-C Cable
