OV9732 720P HD Camera Module - 1MP Face Recognition, Plug & Play

Product Specifications:

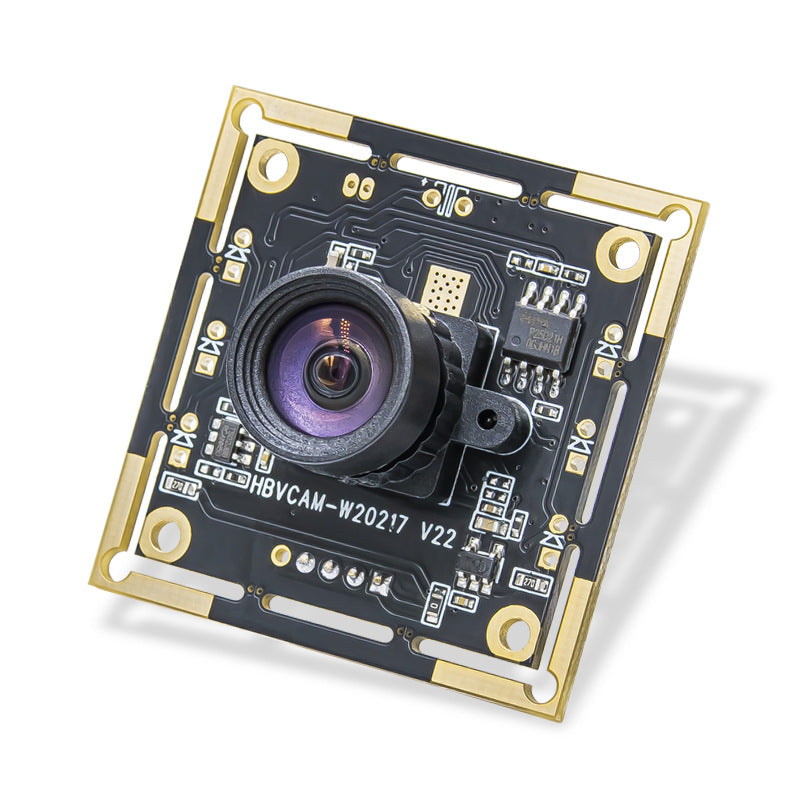

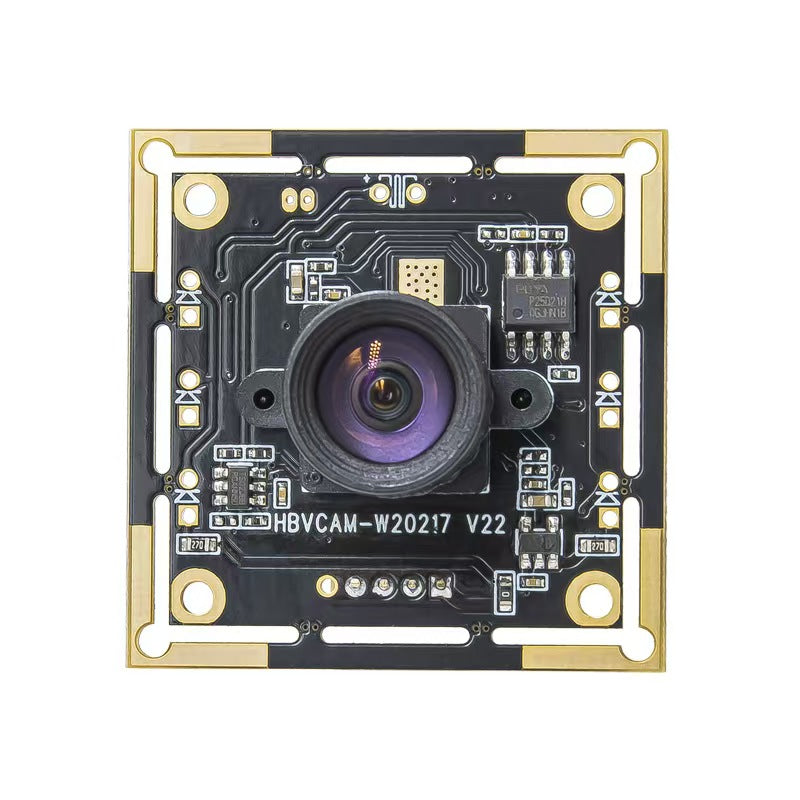

• Model Number: HBVCAM-W20217 V22
• Module Size: 38mm x 38mm x 24.5mm ± 0.5mm
• Operating Temperature: -30°C to 70°C
• Stable Image Temperature: 0°C to 50°C
• Assembly Technique: SMT (ROHS compliant)
• Focus: Fixed
• Object Distance: 30cm
• Resolution: 600 LW/PH (Center)
• PCB Printing Ink: Black
• Interface: USB 2.0
• Power Supply: USB bus powered
• Supply Voltage: DC 5V ± 5%
• Maximum Power Consumption: 450 mW
• Compatible Operating Systems: Windows XP/7/8/Vista, Android 4.0, macOS, Linux with UVC

Camera Sensor:

• Sensor Type: OV9732 (1/4-inch)
• Sensor Package: CSP, Bare Die
• Maximum Resolution: 1280 x 720
• Sensitivity: 3300 mV/(lux-sec)
• Pixel Size: 3µm x 3µm

Image Transfer Rates:

• MJPEG 640x360 at 30 FPS
• YUY2 640x360 at 30 FPS
• MJPEG 640x480 at 30 EPS
• YUY2 640x480 at 30 FPS
• MJPEG 800x600 at 30 FPS
• YUY2 800x600 at 15 FPS
• MJPEG 1280x720 at 30 FPS
• YUY2 1280x720 at 10 FPS

Performance and Features:

• S/N Ratio: 39 dB
• Max Dynamic Range: 72 dB
• Shutter Type: Electronic rolling shutter
• Auto Features: AGC/AEC/White Balance
• Output Formats: YUY2/MJPEG
• Microphone: No
• Lens Construction: 2G2P
• F-Number (F/No): 2.4
• Effective Focal Length (EFL): 3.6 mm
• Field of View (FOV): 72°
• Relative Illumination (Sensor): 70%
• IR Filter: 650 ± 10 nm
• Module Package: Anti-electrostatic tray
• Certifications: FCC/CE/ROHS

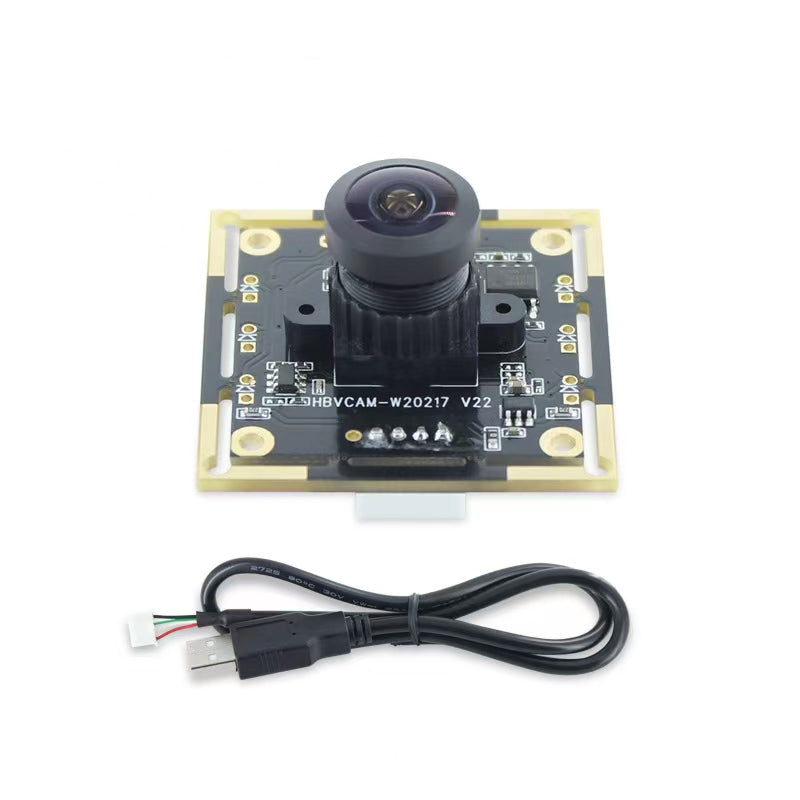

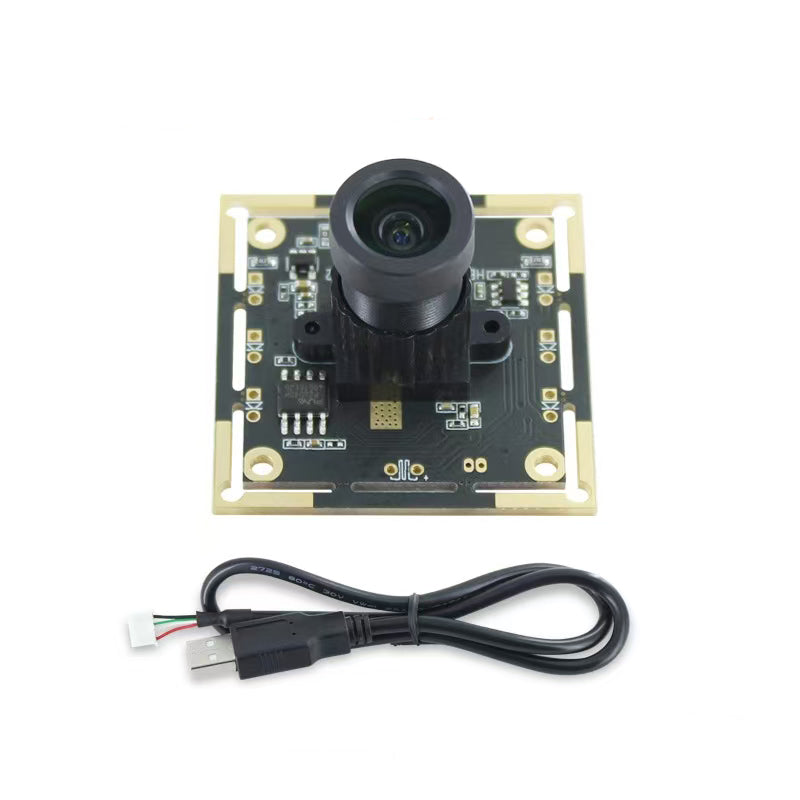

Package Includes:

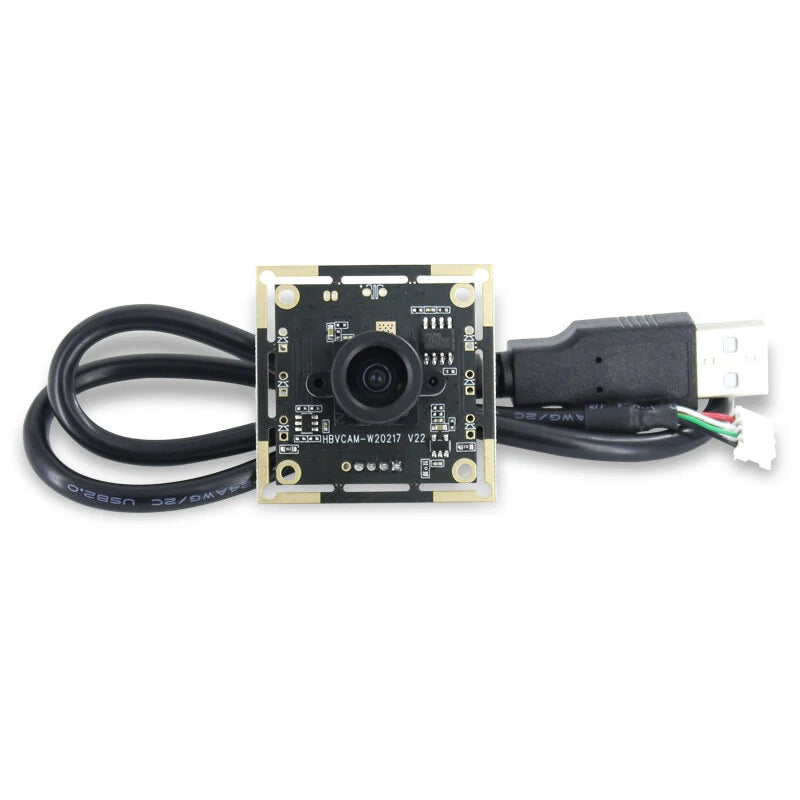

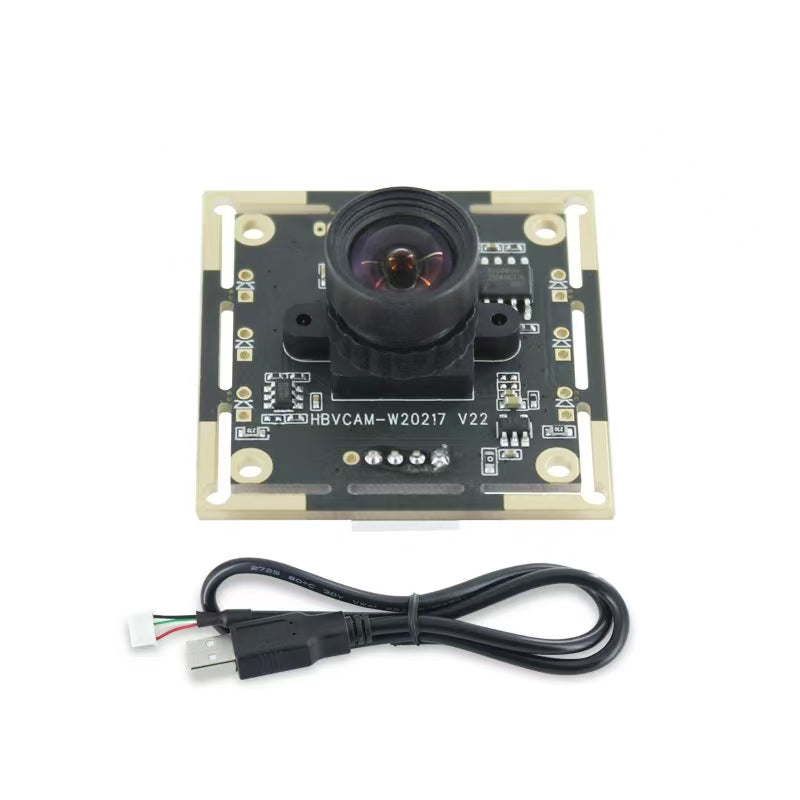

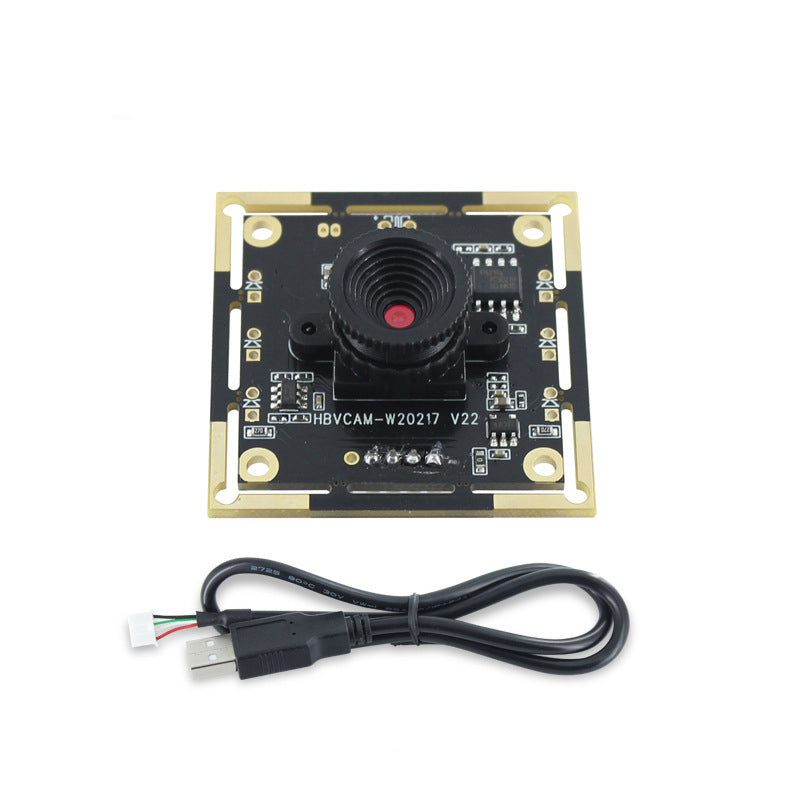

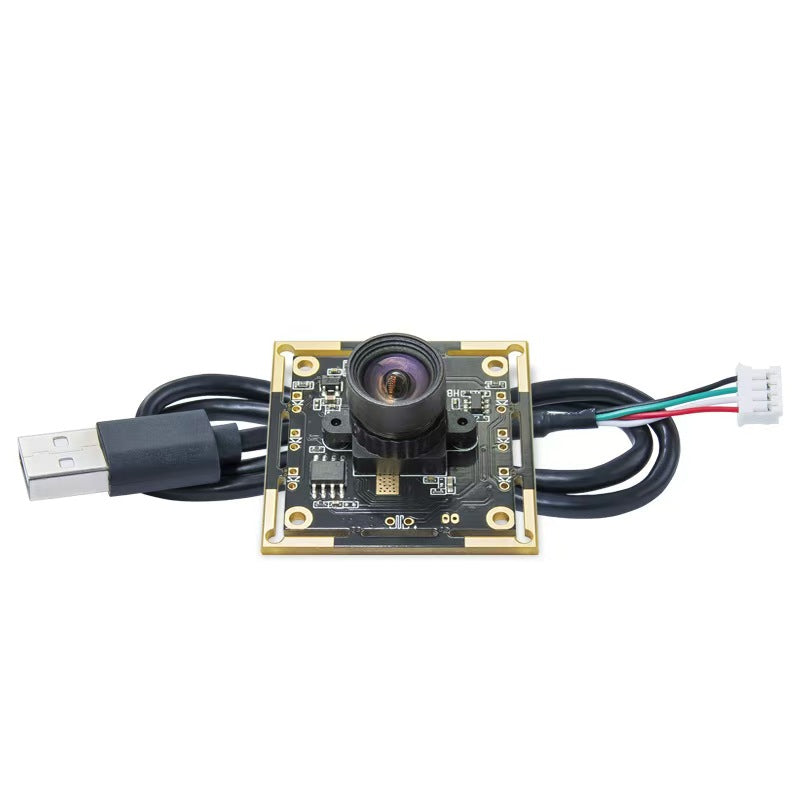

• 1 x Camera Module

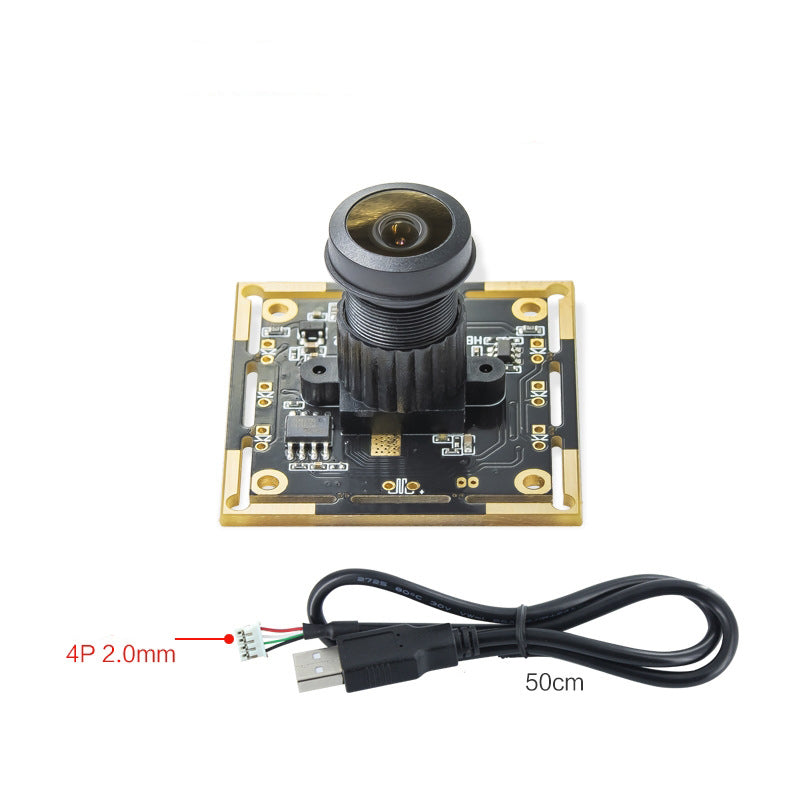

• 1 x USB Cable
