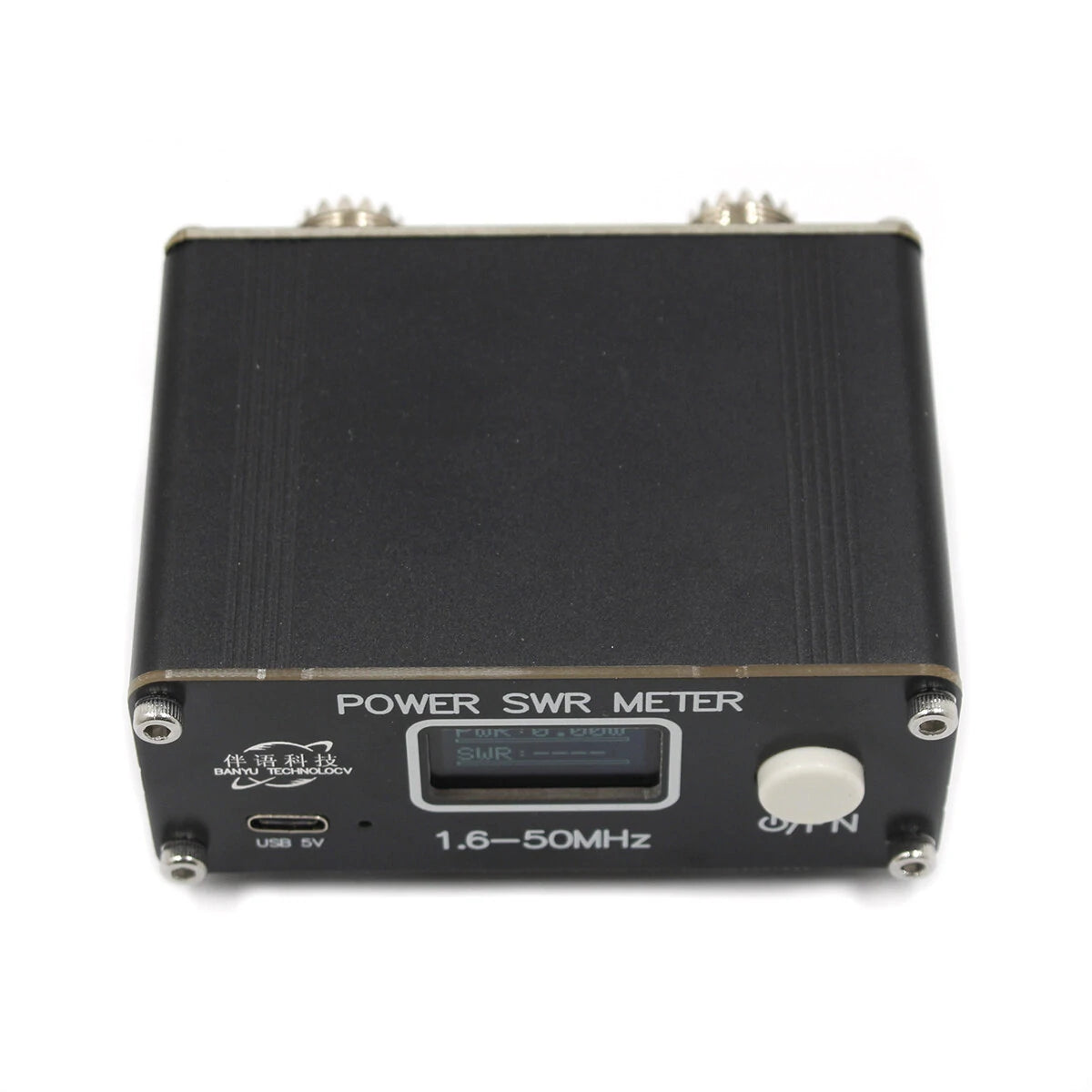

CP QRP 150W HF SWR Meter 1.6-50MHz for FM/AM/CW/SSB

Description:

• 5 interface display modes with dynamic simulation display bar.
• Switch easily between normal mode and peak hold mode.
• Enhanced accuracy using the fitting algorithm of detector diode characteristics, offering precision better than ± 5%.
• High-speed average detection mode for real-time efficiency display.
• Audible alarms: intermittent beep for standing wave greater than 2.0 and continuous beep for greater than 3.0.
• Compatible with G8GYW open source software code for customizable experiences.
• Powerful built-in lithium battery lasts over 50 hours per charge.

Parameters:

• Frequency Range: 1.6-50MHz
• Power Measurement Range: 0.5W-150W
• Standing Wave Measurement Range: 1.0-99.9
• Insertion Loss: < 0.12dB
• Insertion Standing Wave: 1.6-30MHz ≤ 1.02; 30-50MHz ≤ 1.05
• Measurement Accuracy: Better than ± 5%
• Impedance: 50 Ω
• Standing Wave Alarm: ≥ 2.0 intermittent alarm, ≥ 3.0 continuous alarm (with shutdown function)

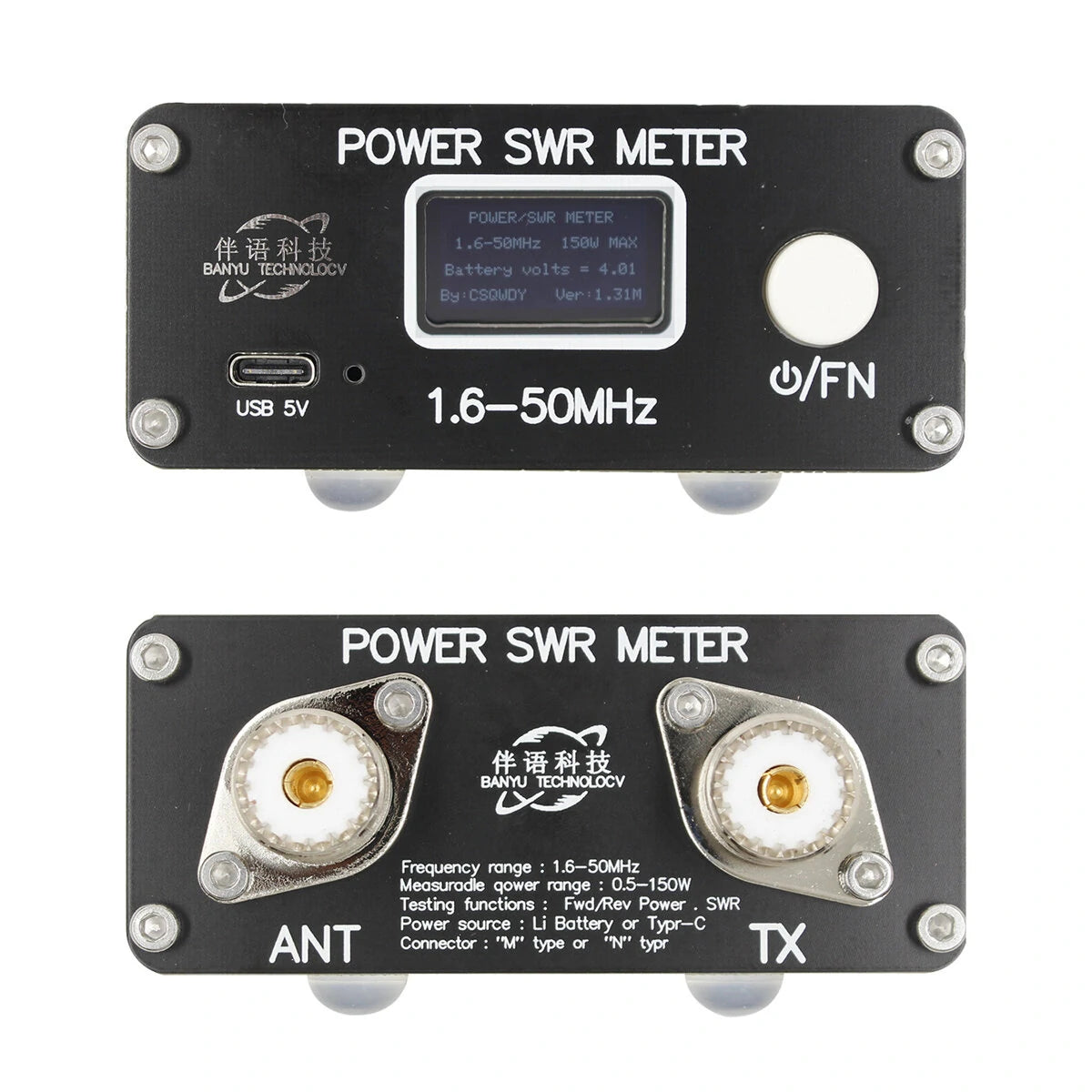

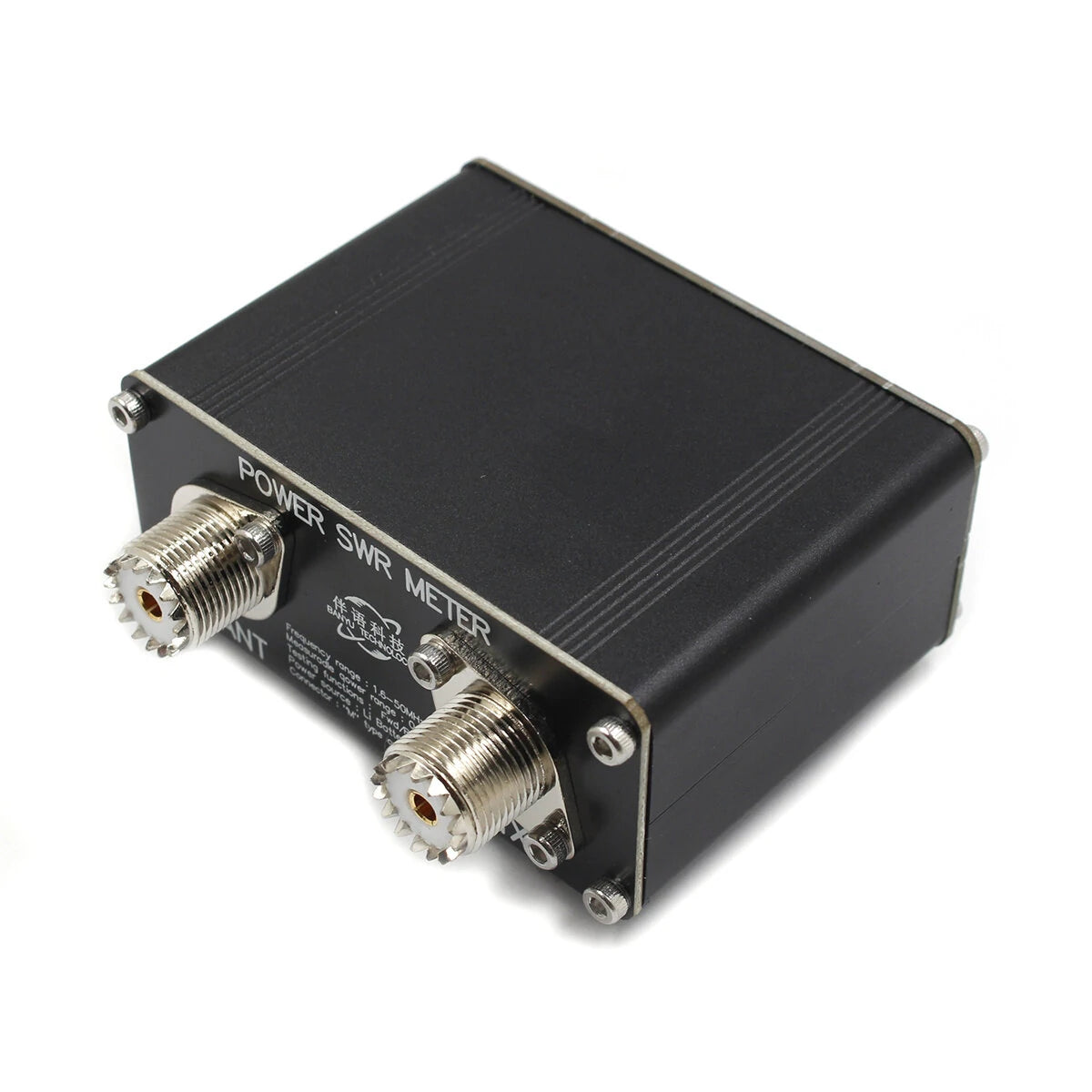

• RF Interface Type: SL16-M

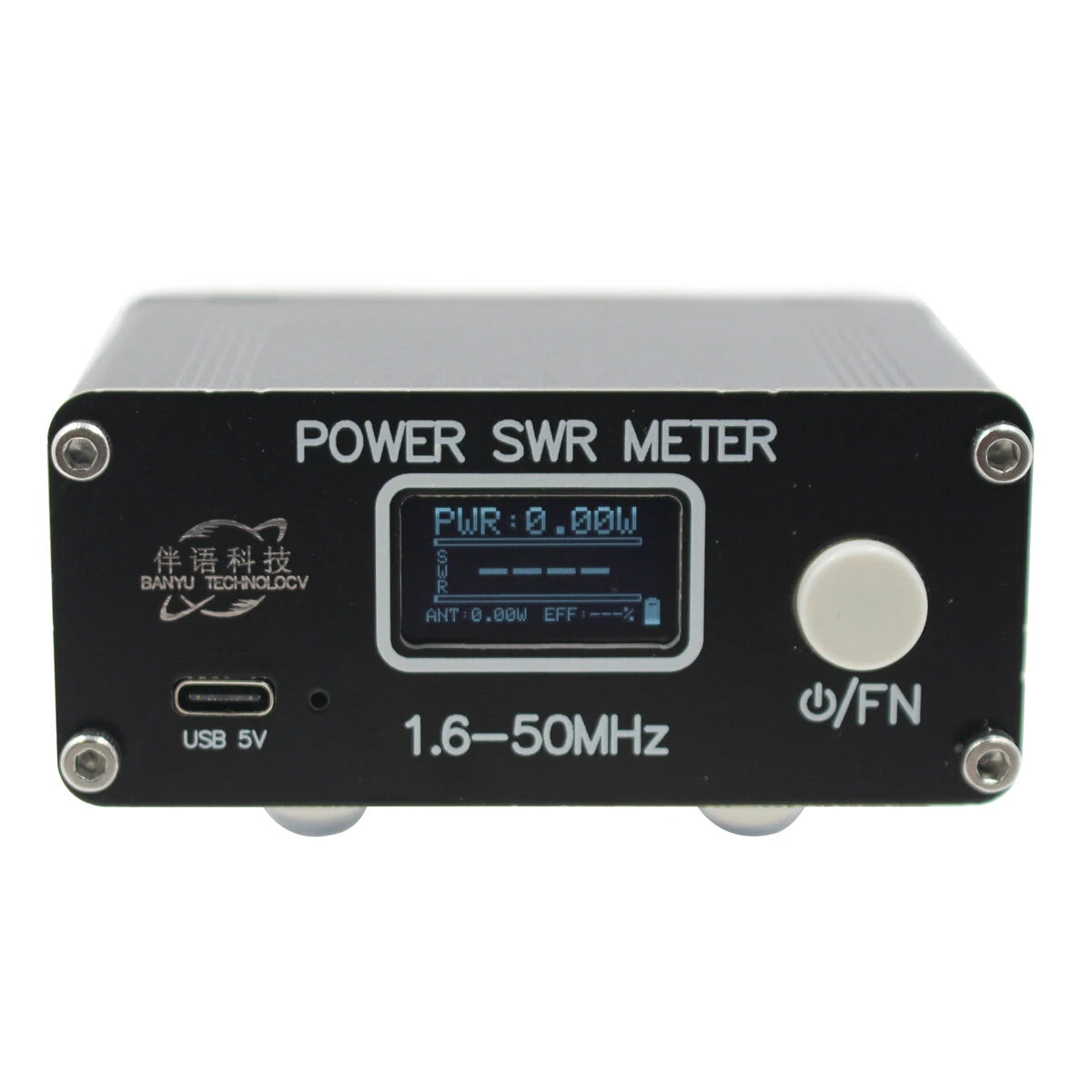

• Display Contents: Forward Power, Standing Wave, Antenna Power, Efficiency
• Power Supply: Built-in 3.7V/900mAh rechargeable lithium battery or USB Type-C
• Shutdown Power Consumption: < 0.1uA
• Screen Size & Type: 0.96 inches, OLED
• Data Communication: USB Type-C

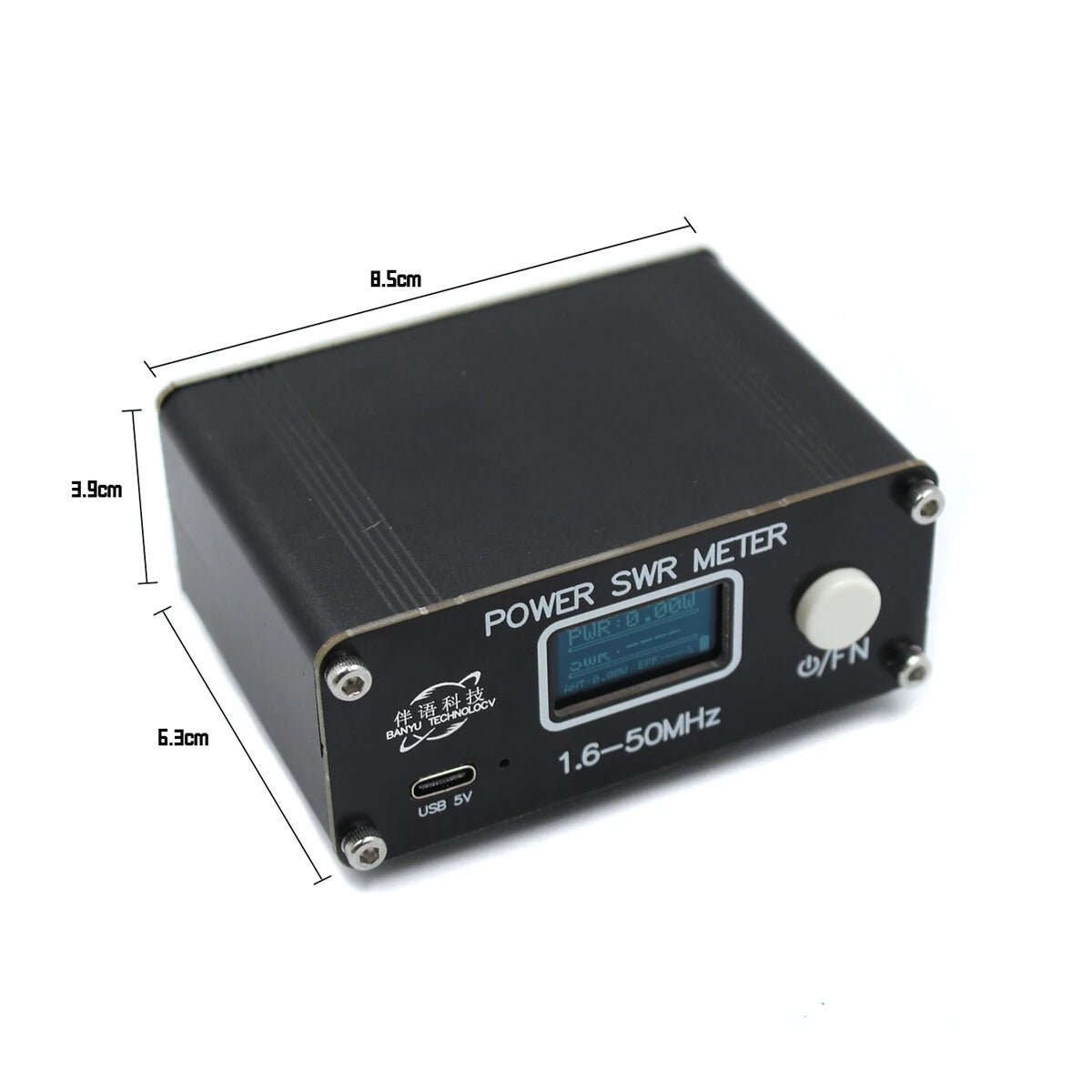

• Overall Size: 88mm x 38mm x 64mm (excluding protruding parts)
• Net Weight of Complete Machine: 190g

Special Reminder:

All parameters are measured with professional instruments and are accurate. The device supports 150W continuous detection; exceeding 500W may damage detection components.

Brief Introduction:

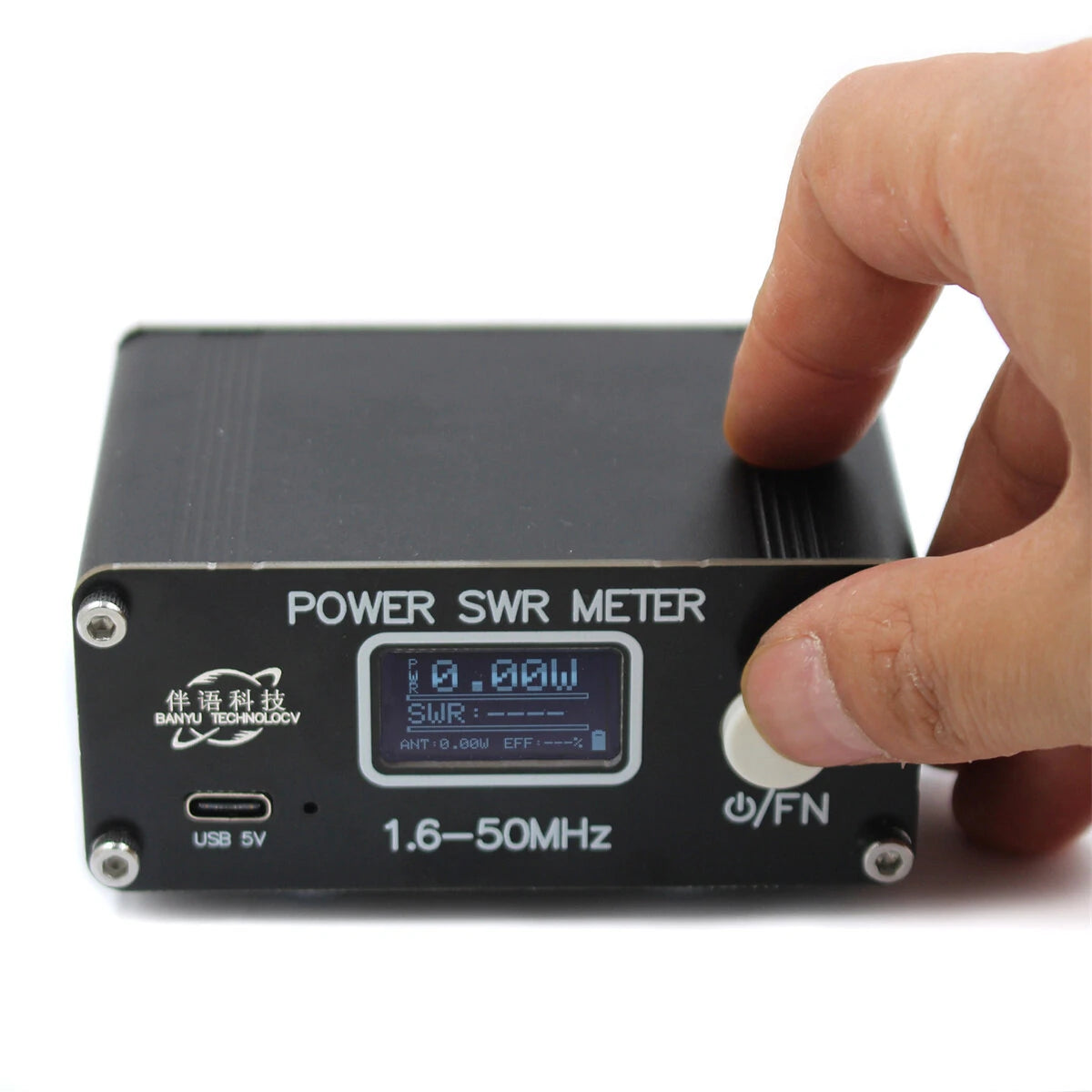

• Long press to power on/off, short press to switch the display interface, and double-click for standing wave alarm.
• Triple-click to switch between normal mode and peak hold mode.
• Features auto-save function for 5 display interfaces.
• Charging indicator: red light shows and turns off when fully charged.

Package Included:

• 1 x Power Meter

Note:

Please allow slight measurement deviation due to manual measurement. The actual color of the item might slightly differ from the pictures due to different monitors and lighting effects.
